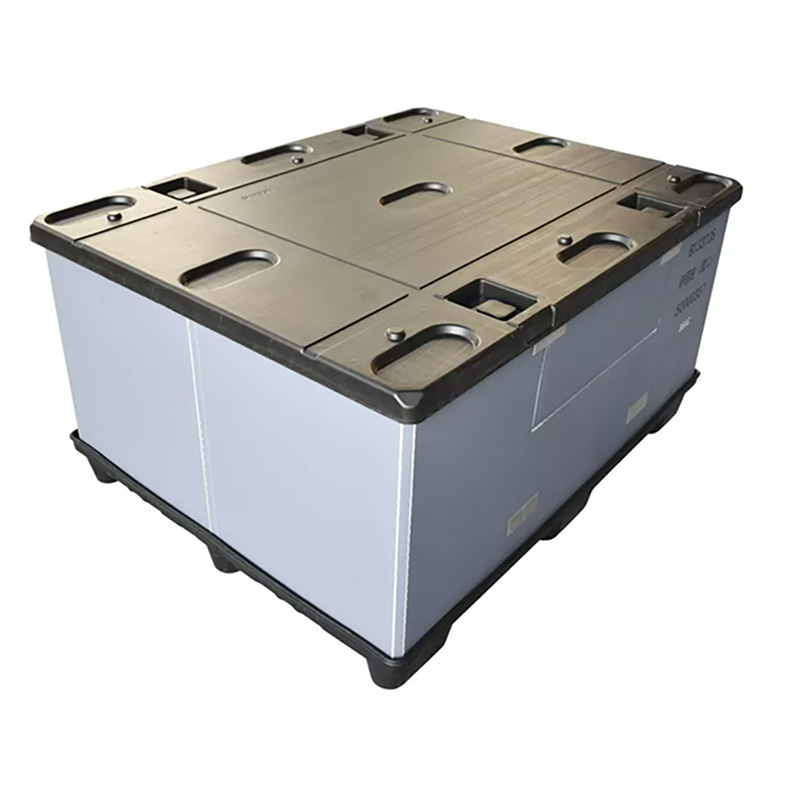

Double Sheet Vacuum Forming Coaming Box
Double Sheet Vacuum Forming Coaming Box( Also known as double sheet thermoforming pallet box, twin sheet Sleeve Pallet Box, foldable logistics storage turnover crate, logistics transportation pallet box, honeycomb plastic pallet sleeve box, plastic sleeve pack containers, bulk pallet pack, sleeve pack boxes, bulk containrs, sleeve pack containers, smart box, collapsible bulk containers, mega pack and so on ）
Double sheet thermoforming coaming box is a cost-effective , light weight, durable, recyclable and flexible on size container. Consists of twin sheet thermoforming base pallet, twin sheet thermoforming top cover and honeycomb coaming panel. And they can be in various thickness depand on the application.
Share This Page
Advantage
- Steel pipe can be thermoformed directly into the pallet to get super high load capacity.
- The double sheet can be in different thickness, the bottom sheet is thicker and top sheet is thinner, which can ensure high strength while keep the weight lower, it’s more cost effective than blow molding pallet.
- Thermoforming pallet has better tough comparing to injection molding pallet. It’s very hard to smash
Like rigid plastic foldable pallet box, they are also reusable bulk containers but cost less - Double sheet vacuum forming coaming box with high load capacity from 300kg to 1000kg
- Compared with wood packs, they are sanitary and washable.
- The sleeves are detachable, lightweight, durable and collapses when emptied to provide efficient storage.
- High return ratio, 5:1 or 8:1
- Easy for customization and operation.
Parameters
| External Size(mm) | 1200*1000 | |
| Internal Size(mm) | 1130*930 | |
| Mateial | HDPE (lid & pallet) + PP (honeycomb sheet) | |
| External Height(mm) | 760 ~ 1050 | |
| Internal Height(mm) | 330 ~ 880 (External – 170) | |
| Sleeve Height(mm) | Total height-120 | |
| Folded Size(mm) | 1200*1000*205 | |
| Weight(kg) | 18kg (Pallet 10kg+ lid 8kg) | |
| Locks | Optional, 4 locks at lid, 4 pcs at bottom pallet | |
| Honeycomb Sleeve | 11.3mm 3kg/㎡ | 11.3mm 4kg/㎡ |
| Static load(kg) | 1+3 (1200kg), height <900mm 1+2 (1200kg), height >900mm |
1+3 (2000kg), height <900mm 1+2 (2000kg), height >900mm |
| Dynamic load(kg) | 1+2 (900kg), height <900mm 1+1 (900kg), height >900mm |
1+2 (1500kg), height <900mm 1+1 (1500kg), height >900mm |
| Single Box Load(kg) | 300kg | 500kg |
| Folding Times | ≥30000 times | |
| Temperature | -20 ℃~ 55 ℃ | |
| Service life | More than 3 years | |
| Folding type | M-folding | |
| Steel Reinforcement | Optional | |
| Dynamic load with reinforcement(kg) | 1000kg | |
| Packing quantity | 160 sets/20GP , 460 sets/40HQ | |
| Runners | Optional, 3 runners | |
Other Options
| 2070*1150mm | 1600*1150mm | 1500*800mm |
| 1470*1150mm | 1350*1150mm | 1250*850mm |
| 1200*800mm | 1150*1150mm | 1150*985mm |
| 1100*1100mm | 800*600mm |
